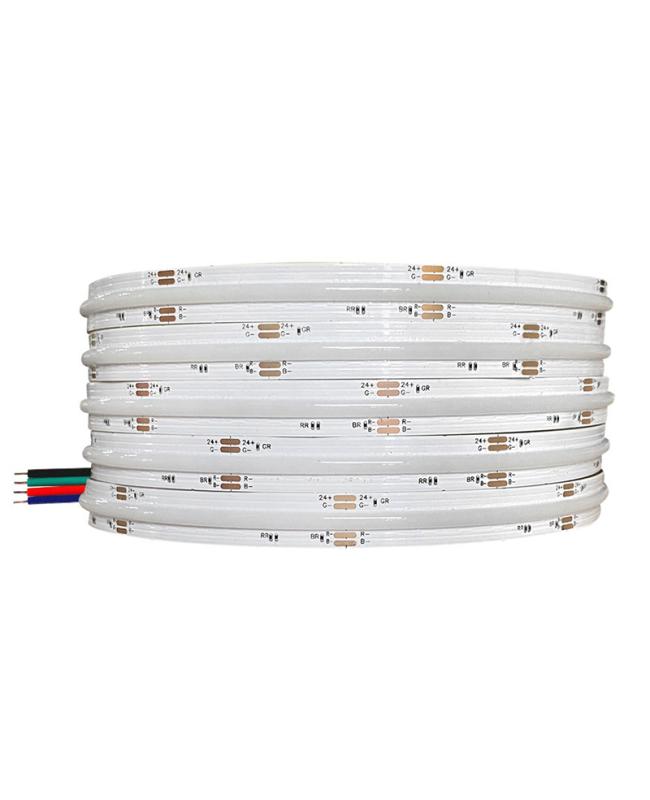

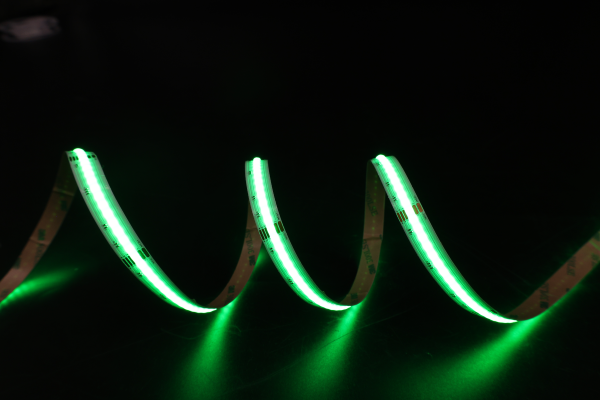

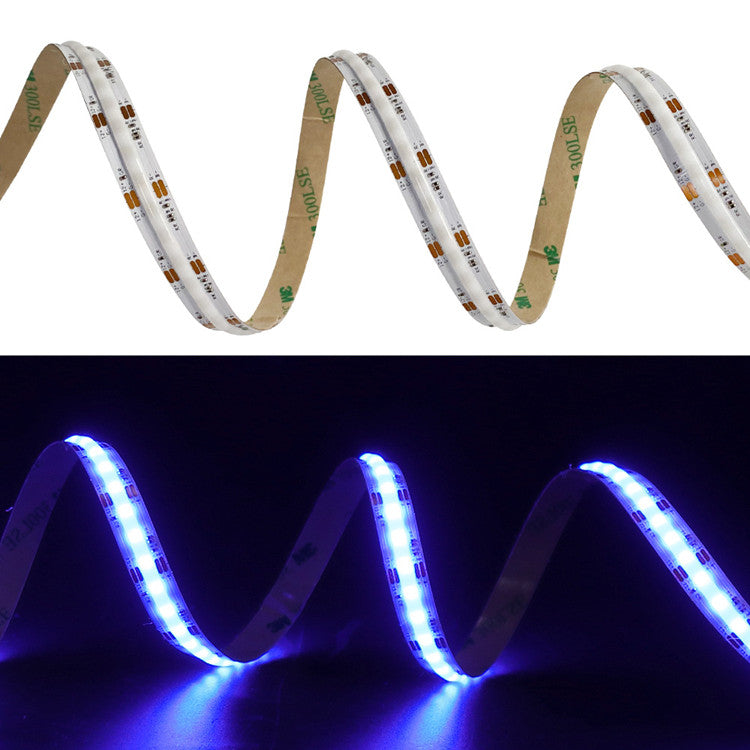

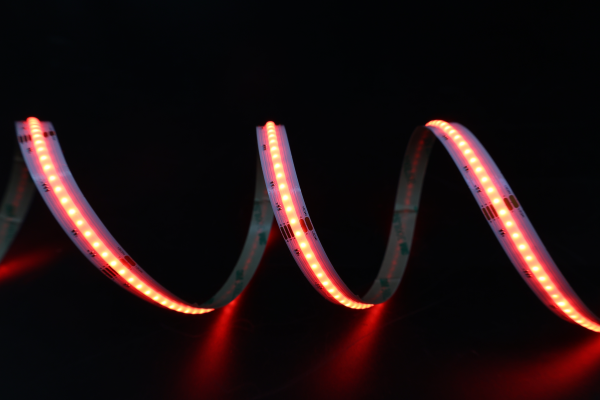

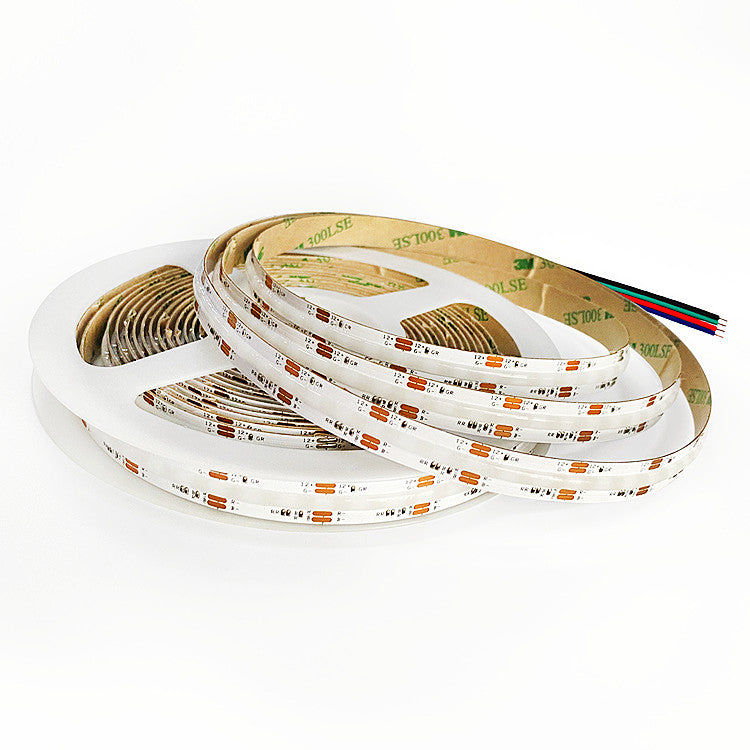

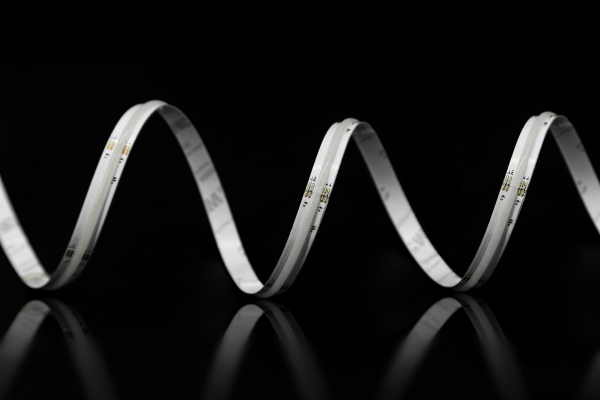

SCOB RGB LED strip

Product Description:

SCOB RGB LED strips, or Stereoscopic Chip-in-Block (COB) LED strips, represent the latest LED strip technology. They combine surface mount technology (SMT) and COB (chip-in-block) innovation to create a hybrid LED strip.SCOB RGB LED light strips can be understood as a combination of RGB SMD LED Strip and COB led strip, satisfying the color variations of SMD RGB while ensuring the continuous gloss and grain-free characteristics of COB.

Easton Technology's SCOB RGB LED strips use the SMD2020 specification with 280 LEDs per meter, a 10mm PCB width, 24V voltage, and are cut to size. These products are available in various protection ratings, including IP20/IP65/IP67/IP68, suitable for diverse applications. Easton also provides power supplies, controllers, aluminum profiles, and other related accessories. Furthermore, Easton offers customization services, including adjustments to cable length, PCB width, LED quantity, connector specifications, logo, packaging, and strip length.

Product Specifications:

 PCB color:
White: white PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

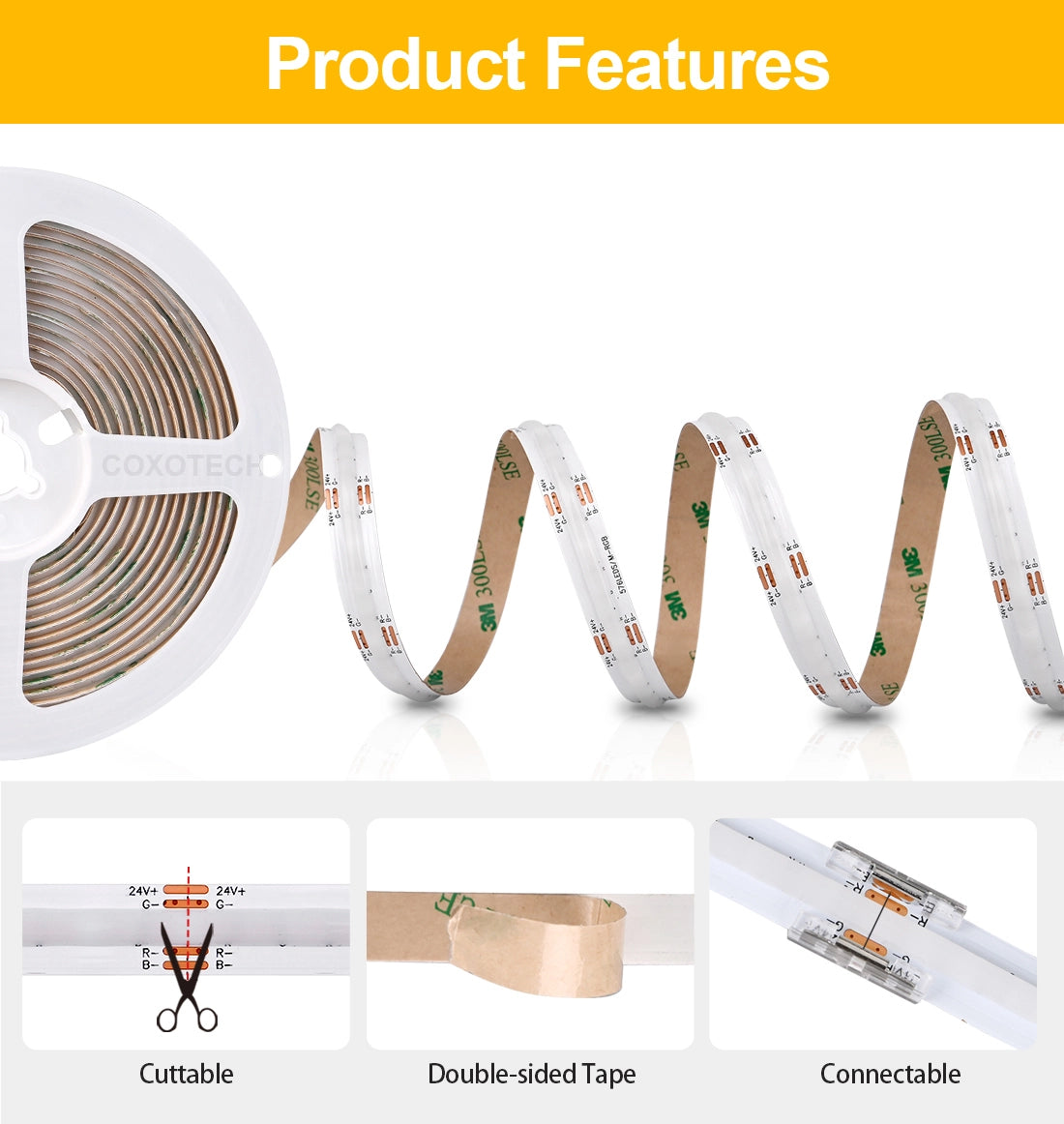

SCOB RGB LED strip Features：

1.) Ultimate Uniformity and Grain-Free Light Efficiency: Although the base light source is an SMD LED, a uniform light-mixing colloid is applied over it, transforming individual discrete point light sources into a continuous, uniform light-emitting surface. This completely eliminates the "graininess" and "spotlight" of traditional SMD RGB light strips, achieving a silky-smooth color transition and significantly improving visual quality.

2.) Enhanced Physical Reliability and Protection: The encapsulating colloid completely wraps and protects key components such as the LED chip, gold wires, and solder joints, preventing failures caused by broken gold wires, solder joint oxidation, or external scratches, as is common in traditional SMD light strips.

The colloid encapsulation naturally provides moisture-proof, dust-proof, and corrosion-proof capabilities, making it easier to achieve higher IP protection ratings, suitable for environments such as kitchens and bathrooms.

Compared to COB LED strips, this effectively avoids solder "void" and ensures a longer lifespan.

3.) Excellent thermal management and color stability: Specialized optical encapsulation adhesives typically have good thermal conductivity, helping to efficiently conduct heat generated by the LED chip to the PCB board and dissipate it, thus reducing the operating temperature of the strip.

Lower operating temperature directly results in higher luminous efficacy (15%-30% higher than COB LED strips) and a longer lifespan, while effectively preventing color drift in RGB strips (especially the white light chip) due to temperature increases, ensuring consistent color.

4.) Easy installation and maintenance: The strip is more robust and less prone to damage to internal components due to bending or folding.

Because the light itself is very uniform, there is no need to painstakingly adjust the shielding angle to eliminate graininess during installation, allowing for a simpler light trough, achieving the "simpler and more invisible installation" you mentioned.

RGB SCOB LED Strip VS RGB COB LED Strip VS  RGB SMD LED Strip：

SCOB RGB LED strip product details:

Easton Technology's RGB SCOB LED strips, with their core advantages of uniform, particle-free light, smooth color blending, and high visual quality, are widely used, primarily in decorative and ambient lighting applications requiring high light quality. These applications include:
1. Home Decorative Lighting (Pursuing a High-Quality Lifestyle)
This is the primary and most common application for RGB SCOB strips, aiming to enhance home style and comfort.

Ceiling Lighting

Ceiling Troughs (Indirect Lighting): Used in ceiling troughs in living rooms, bedrooms, and hallways. Light reflects off the ceiling, creating a soft, uniform halo, achieving a "light without lamp" effect, significantly enhancing the sense of depth and luxury in a space. SCOB uniformity is crucial here, eliminating the graininess often associated with standard strip lighting.

Curtain Box Lighting: Install strips in the recess above curtains, illuminating the curtains and creating a warm, romantic atmosphere while also highlighting the window area.

Background Wall and Wall Lighting

TV/Sofa Background Walls: Install RGB SCOB strips on the decorative shelves, grilles, or edges of the background wall. Uniform light perfectly outlines the wall and changes color to suit your mood or movie scene, becoming the visual centerpiece of your home.

Wall Washer Lighting: Install the light strip in a recessed groove at the top of the wall. The light evenly washes down the wall like water. The wide beam angle and uniformity of the SCOB light strip ensure consistent brightness across the wall, eliminating any unsightly flares.

Cabinet and Furniture Lighting

Under Kitchen Cabinets: As auxiliary lighting for countertops, the uniform, soft light eliminates shadows, making chopping and preparing food safer. It also creates a stylish, technological feel in the kitchen.

Inside Wardrobes/Display Cabinets: Open the cabinet door and the even light instantly illuminates clothing or collectibles, reminiscent of a high-end shopping mall display case, making it easy to access and creating a sense of formality.

Under Beds/Tatami: Installed at the base of the bed frame, it serves as a cozy night light and creates a sense of suspended technology.

Other Areas

Staircase Lighting: Installed along the edges or under the stair treads, it provides safety lighting while creating a smooth flow of movement, creating a beautiful and practical look.

Around Mirror Cabinets: Used on the back or sides of bathroom mirrors, it provides even facial illumination, avoiding shadows and is ideal for applying makeup and skincare.

II. Commercial and Public Space Lighting (Brand Enhancement)
In the commercial sector, lighting is a key tool in shaping the atmosphere of a space and attracting customers.

Retail and Display

Display Cases/Racks: Used for counter lighting of jewelry, watches, cosmetics, high-end electronics, and other products. The uniform light provided by SCOB strips perfectly showcases the quality and details of the products, enhancing their value.

Malls/Brand Stores: Used to define space contours, illuminate brand logos, and create a specific atmosphere (such as for festivals or promotions) to attract customers.

Hotels and Restaurants

Hotel Lobbies/Corridors/Guest Rooms: Used in ceiling troughs and walls to create an ambiance and create a comfortable and luxurious stay.

Bars, Restaurants, and Cafes: Create diverse dining or entertainment atmospheres, such as romance, excitement, or tranquility, through changing colors. The smooth color transitions of SCOB light strips enhance the environment's sophistication.

Offices and Public Spaces

Offices: Used in common lounge areas, meeting rooms, and other areas, SCOB light strips help employees relax or stimulate creativity by adjusting light color.

Museums, Art Galleries, and Museums: Provide uniform, glare-free illumination for exhibits, protecting them while ensuring optimal viewing experience.

III. Specialty and Architectural Lighting
Architectural Outlining: Used to highlight structural lines such as eaves and columns, showcasing the unique beauty of buildings at night.

Signage: Used for internal lighting of backlit signs or logos, providing uniform illumination and clear, eye-catching signs.

Creative Art Installations: Artists and designers utilize SCOB light strips' soft light and color-changing properties to create a variety of dynamic light artworks.

SCOB RGB LED strip product details:
