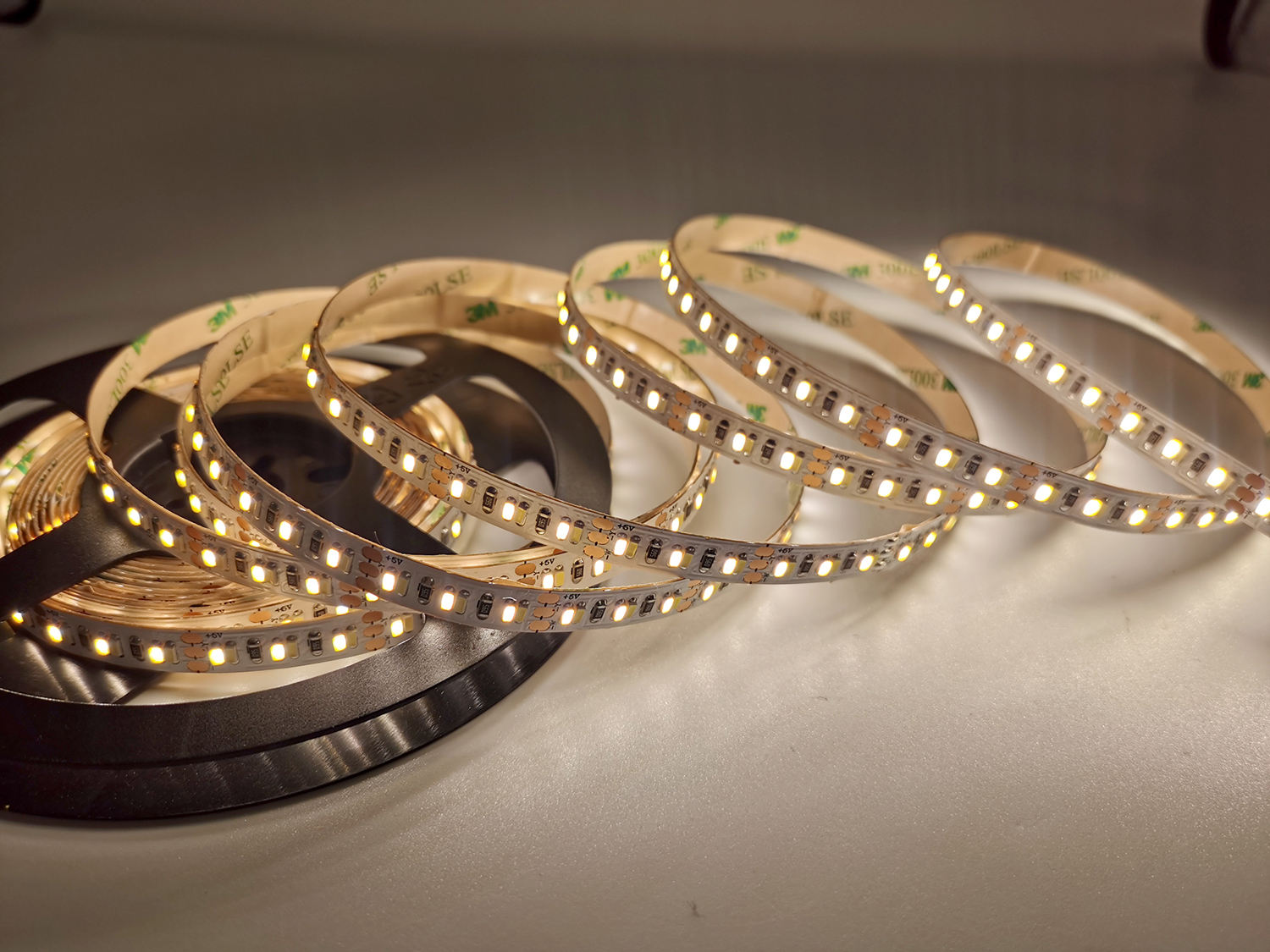

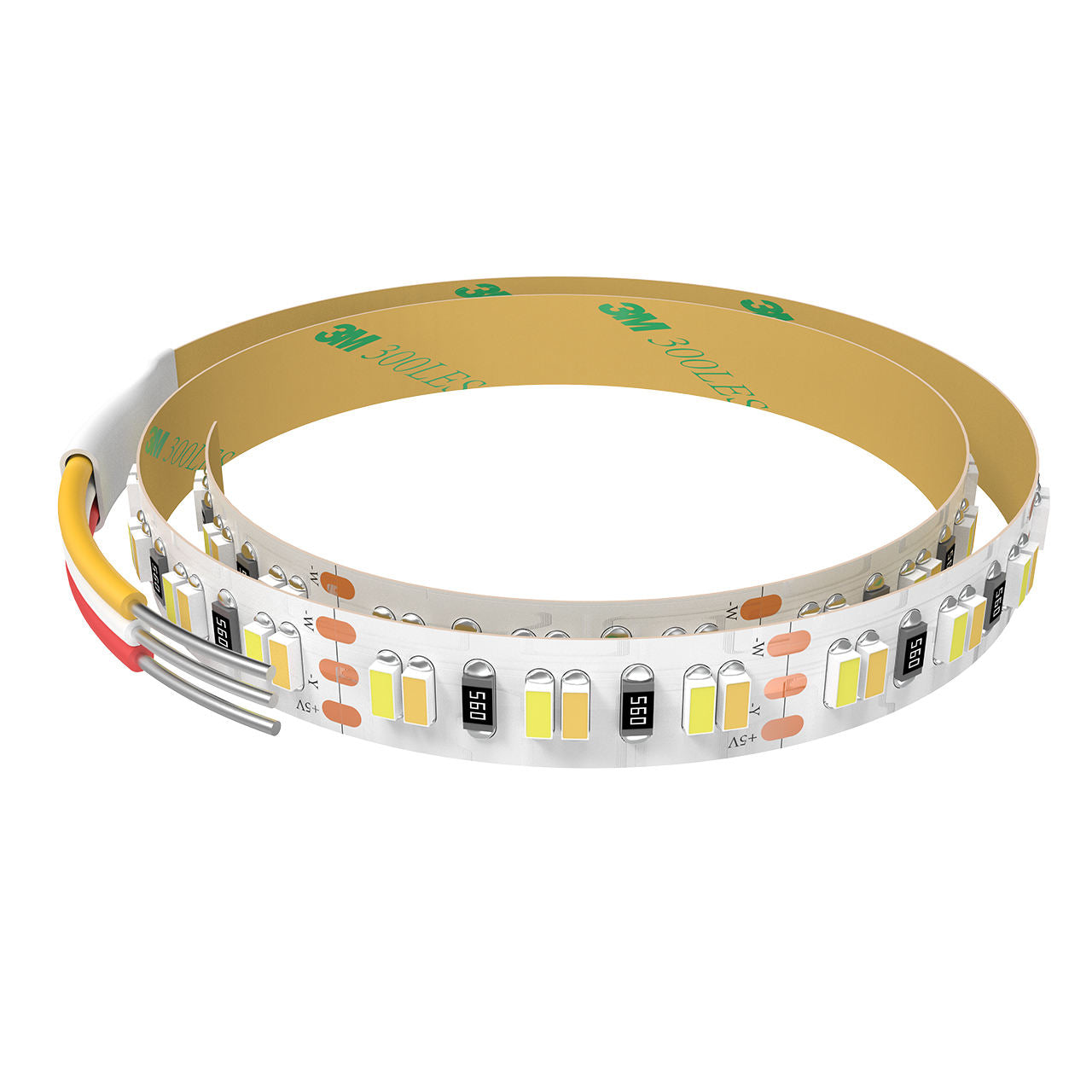

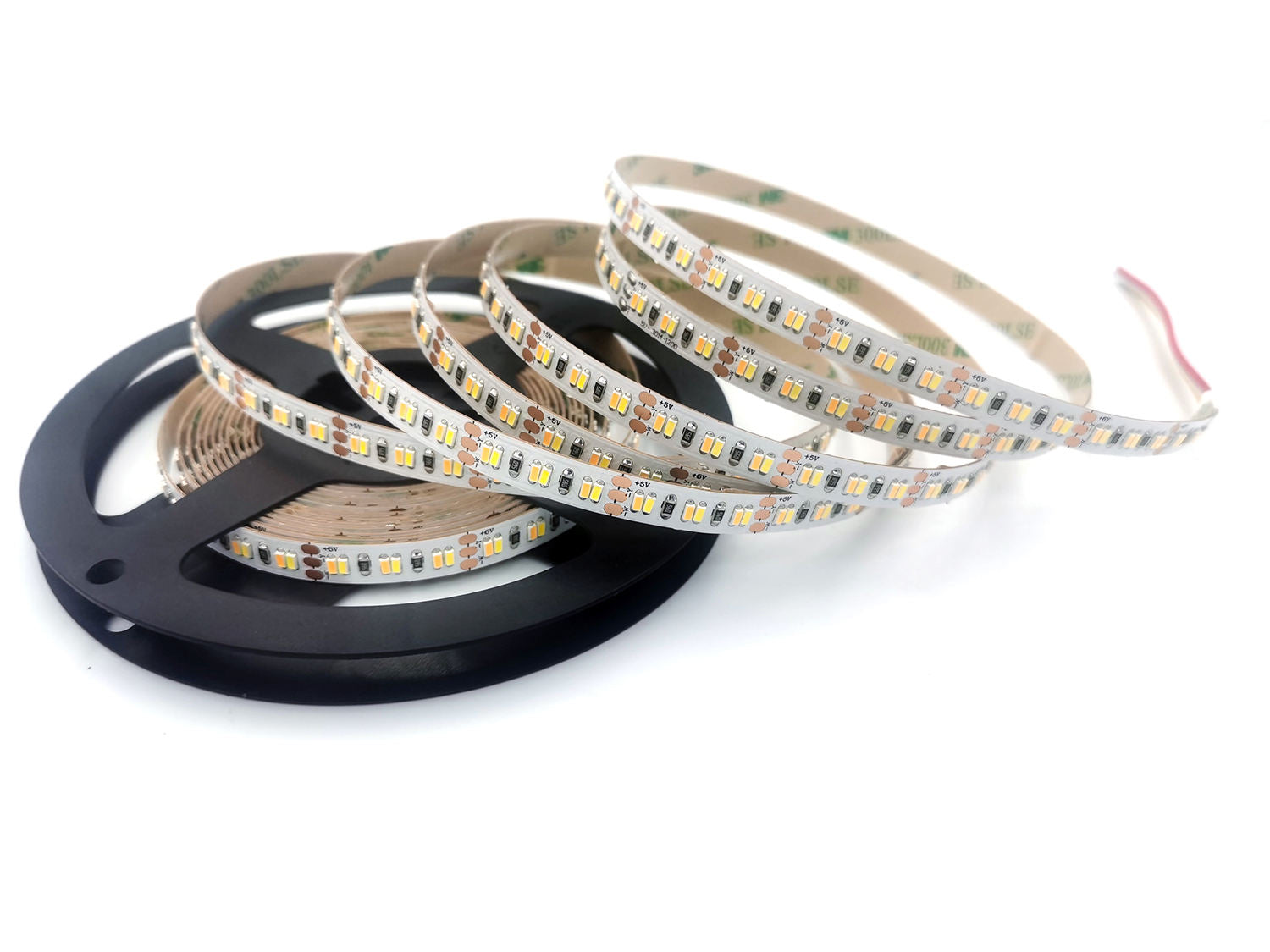

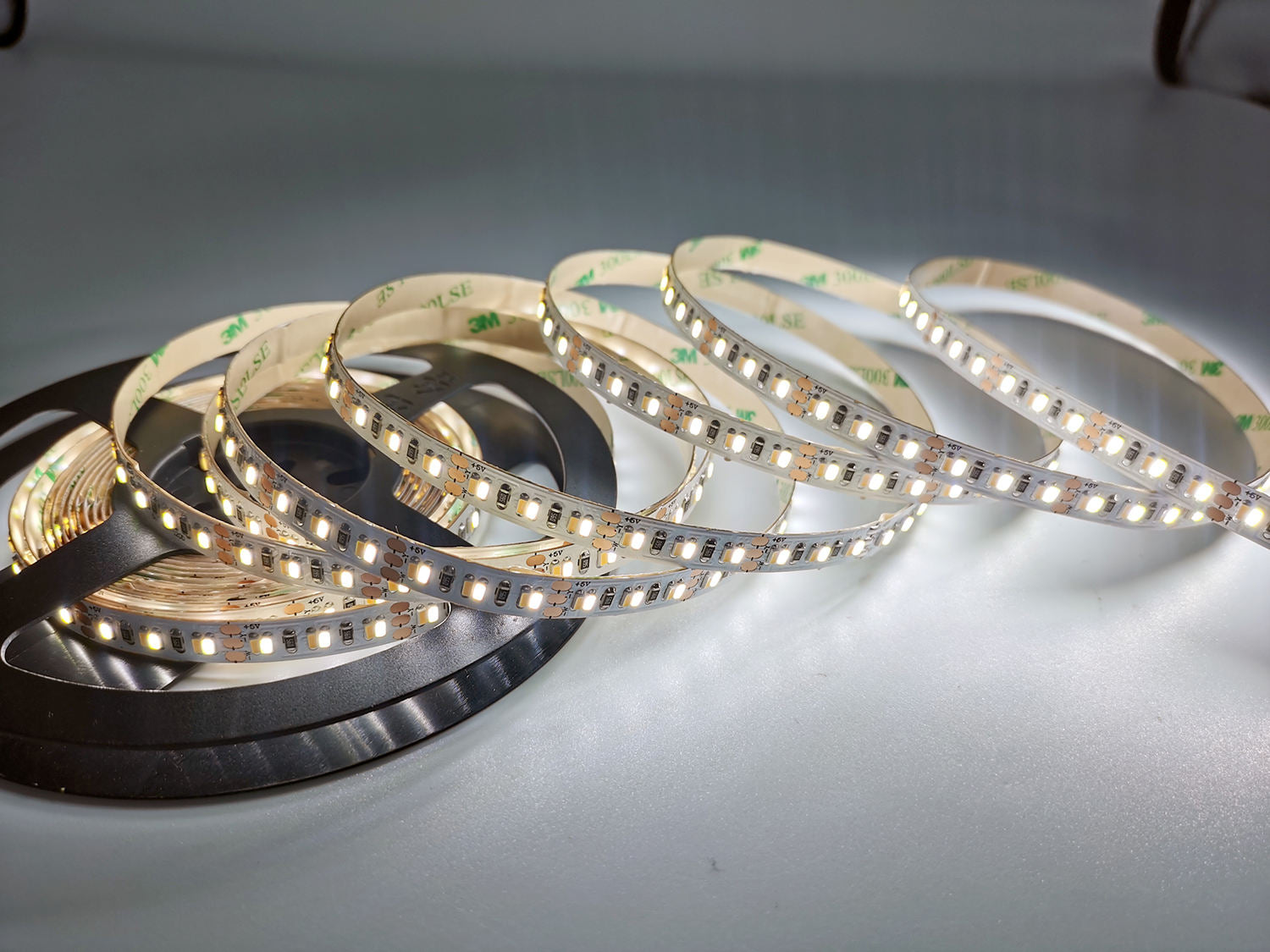

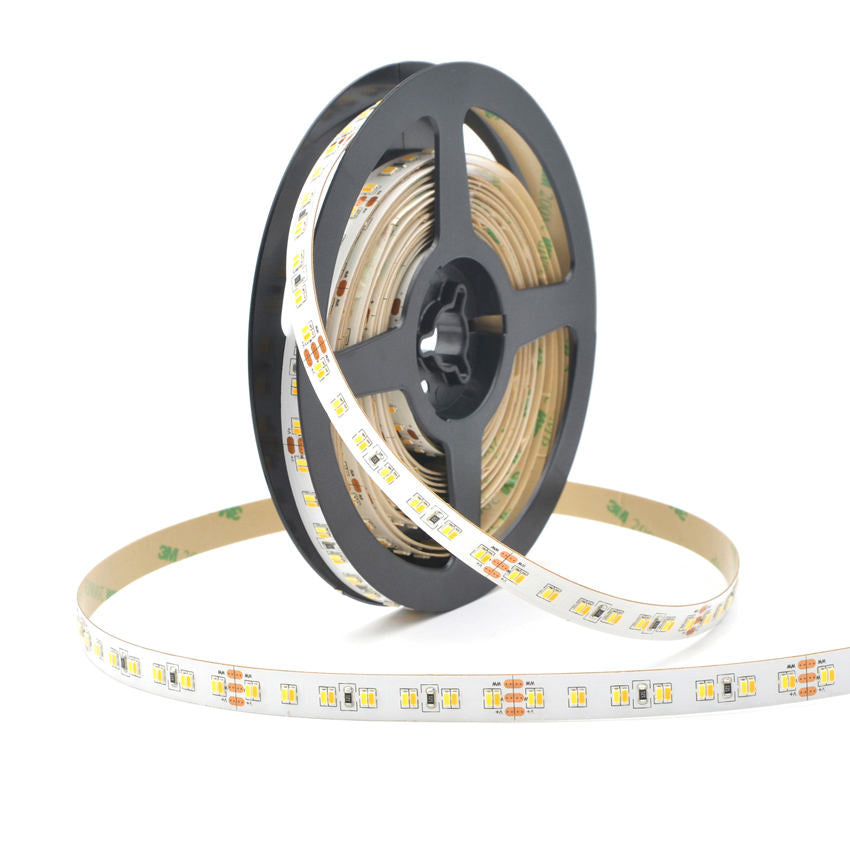

SMD3014 dual color LED strip

Product Description:

SMD3014 dual color LED strip also known as SMD3014 color temperature adjustable LED strip or SMD3014 dual white led strip or SMD3014 CCT LED strip or SMD3014 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K).

Easton Technology Co., Ltd.'s SMD3014 dual color LED strip  products include  224leds/M and 240Leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:

PCB color:

White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD3014 dual color LED Strip Features：

1. Adjustable color temperature (CCT) technology
Dual color temperature integration: Each SMD3014 LED chip is encapsulated with two color temperature chips, warm white (2700K-3500K) and cool white (6000K-6500K), which are independently controlled through a three-wire circuit to achieve stepless color temperature adjustment.
2. Controller support: It needs to be paired with a dedicated CCT controller (such as a constant voltage drive or DMX system). Users can remotely switch color temperature (such as 2700K warm mode to 6500K focus mode) to adapt to circadian rhythm needs.
3. Wide color temperature range: Covering 1800K (amber light) to 6500K (daylight white), it meets the mood lighting design of home and commercial scenes.
4. Optical performance:
Brightness: The brightness of a single LED is 8-10 lumens (30mA current), and the high-density design improves the overall light effect.
Color rendering index: Ra ≥ 80 (standard version), optional Ra ≥ 90 high color rendering version, enhanced color reproduction ability, suitable for display space.
Lighting angle: 120° side-lighting design, uniform and soft light, reducing light spots, suitable for contour lighting and dark groove installation.
5. Electrical characteristics:
Voltage support: DC12V/24V low-voltage power supply, high safety, requires a constant voltage power adapter.
6. Physical characteristics:
PCB flexibility: Double-sided electrolytic copper flexible circuit board (FPC) is used, with a width of 8-10mm, which can be bent and fit complex curved surfaces.
Protection level: Support IP20/IP65/IP67/68, suitable for humid or outdoor environments.
7. Application scenarios
Commercial space: hotel lobby, shopping mall display cabinets, restaurant atmosphere lighting, through color temperature adjustment to match different time scene requirements (such as high color temperature in the morning to refresh, low color temperature at night to relax).
Home design: under-cabinet lighting, TV backlight, bedroom atmosphere light, high color rendering enhances home texture, concealed installation enhances spatial hierarchy.
Professional field: museum exhibition, medical lighting, use Ra90+ version to achieve accurate color reproduction and reduce visual fatigue.
8. Customization capability
Flexible configuration: support customized LED density, PCB color (white/black/yellow), length (can be cut to 3 lights/group).
OEM service: provide PCB corporate logo printing, special color temperature (such as 1800K amber light), CRI>95 high color rendering scheme.

The core advantage of SMD3014 CCT light strip lies in dynamic color temperature adjustment and high color rendering, combined with flexible installation and industrial-grade protection, it has become the preferred choice for high-end commercial and home lighting. Its low-voltage safety design, 50,000-hour life and strict quality control (such as aging test) further ensure reliability. Customization options meet diverse project needs.

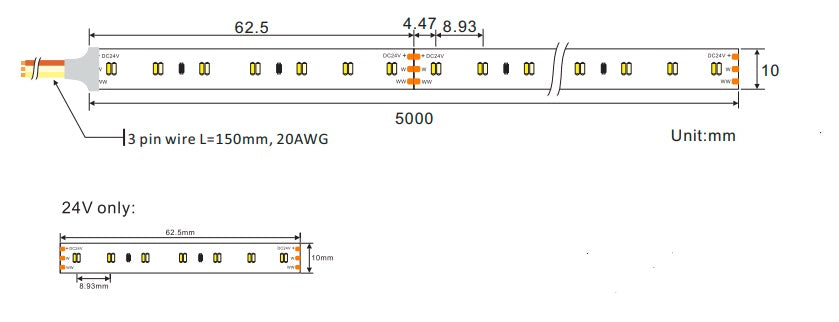

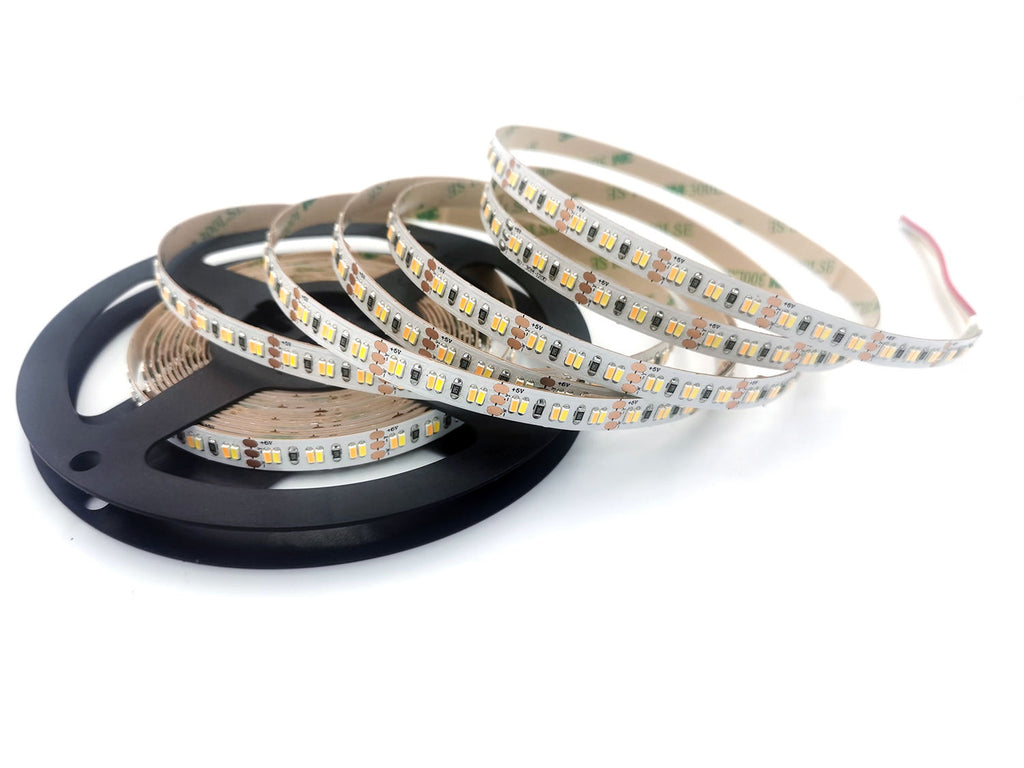

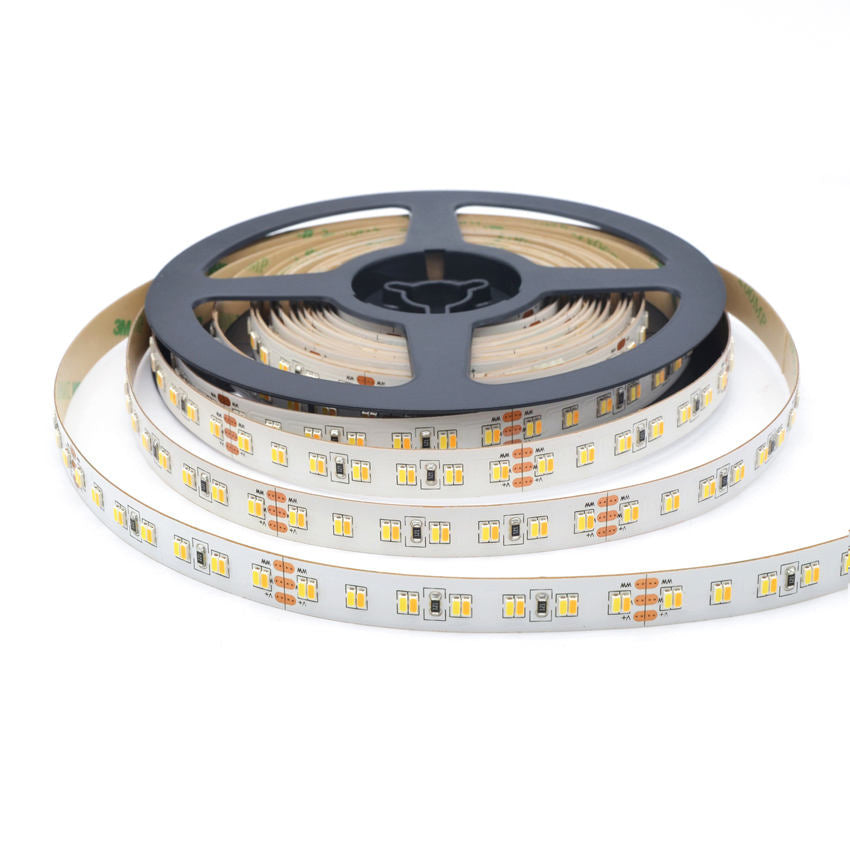

SMD3014 dual color LED Strip product details:
