SMD2110 dual color LED strip

Product Description:

SMD2110 dual color LED strip also known as SMD2110 color temperature adjustable LED strip or SMD2110 dual white led strip or SMD2110 CCT LED strip or SMD2110 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K).

Easton Technology Co., Ltd.'s SMD2110 dual color LED strip  products include  476leds/M and 616Leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:

PCB color:

White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD2110 dual color LED Strip Features：

1. Adjustable color temperature range
Supports wide range adjustment of 2700K~6700K (some models can reach 15000K), and achieves seamless transition from warm yellow to cool white by independently controlling the brightness ratio of two groups of LED chips, warm white light (2700K~3000K) and pure white light (6000K~6700K).
A dedicated CCT controller (such as Bluetooth/WIFI dimmer) is required to achieve dynamic adjustment.
2. High color rendering index (CRI)
Generally provides Ra≥90, some models support Ra95/Ra97 or even R9>90 (outstanding red restoration ability), significantly improving color authenticity, suitable for museums, jewelry exhibitions and other places with high color accuracy requirements.
3. High density and particle-free light effect
High-density design eliminates the particle feeling of traditional light strips and achieves uniform linear lighting.
4. Ultra-small size and flexibility
The LED size is only 2.1×1.0×1.1mm, and the width of the light strip is narrow, which can be bent to fit complex curved surfaces (such as cabinets and car contours). Flexible PCB substrate (copper material) supports cutting
5. Diverse protection levels
Provide IP20 (non-waterproof) to IP68 (fully waterproof) options, of which IP65/IP67/IP68 versions use drip glue, silicone sleeve or neon technology, suitable for outdoor or humid environments.
6. Low-voltage drive and energy efficiency
The working voltage is mainly DC24V, the light efficiency is >80 lm/W, and the energy consumption is lower than traditional lighting.
Constant voltage drive design avoids flicker and needs to match constant voltage power supply.
7. Long life and stability
Use brand LED chips, life of 50,000 hours, low light decay, high color temperature consistency, and no batch color difference.
8. Application scenarios
Commercial space: hotel wine cabinets, shopping mall display cabinets, advertising light boxes (high CRI enhances the texture of goods).
Home decoration: ceiling dark grooves, wardrobe lighting, stair light strips (high density without dark areas).
Professional places: museums, galleries, offices (color rendering requirements Ra95+).
Outdoor/automotive: body contour lights, garden lighting (IP67/IP68 waterproof models).

SMD2110 CCT light strips have miniaturized design, dynamic color temperature adjustment and high color rendering as their core advantages, especially suitable for scenes with strict requirements on light quality. When purchasing, you need to pay attention to the color rendering index (preferably Ra95+), protection level (select IP according to the environment) and matching controller compatibility. Support customization of other specifications. If you have any questions, you can contact Easton

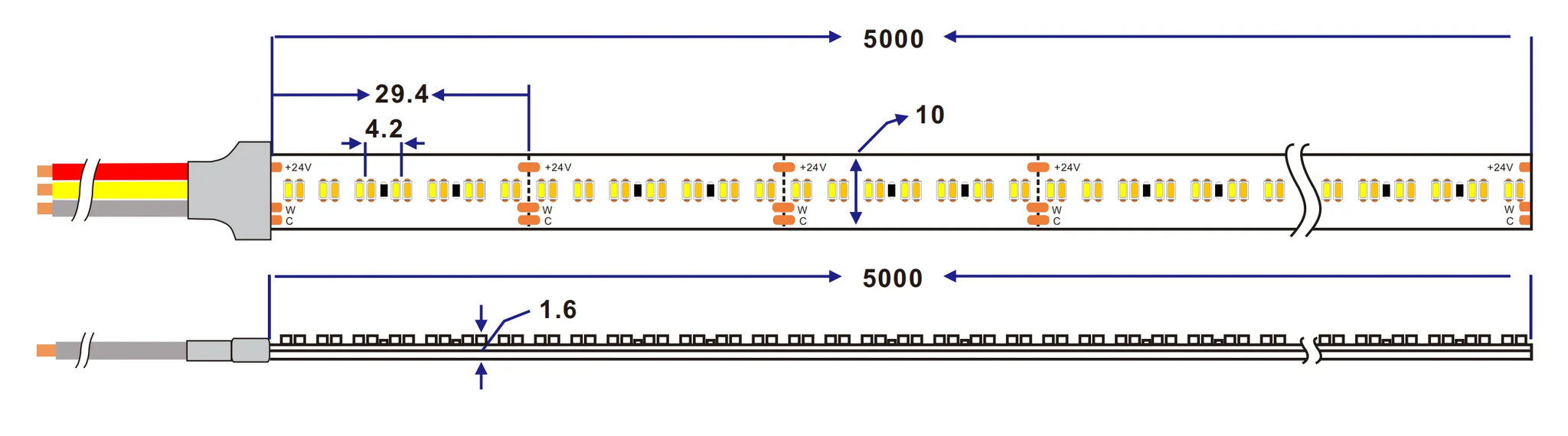

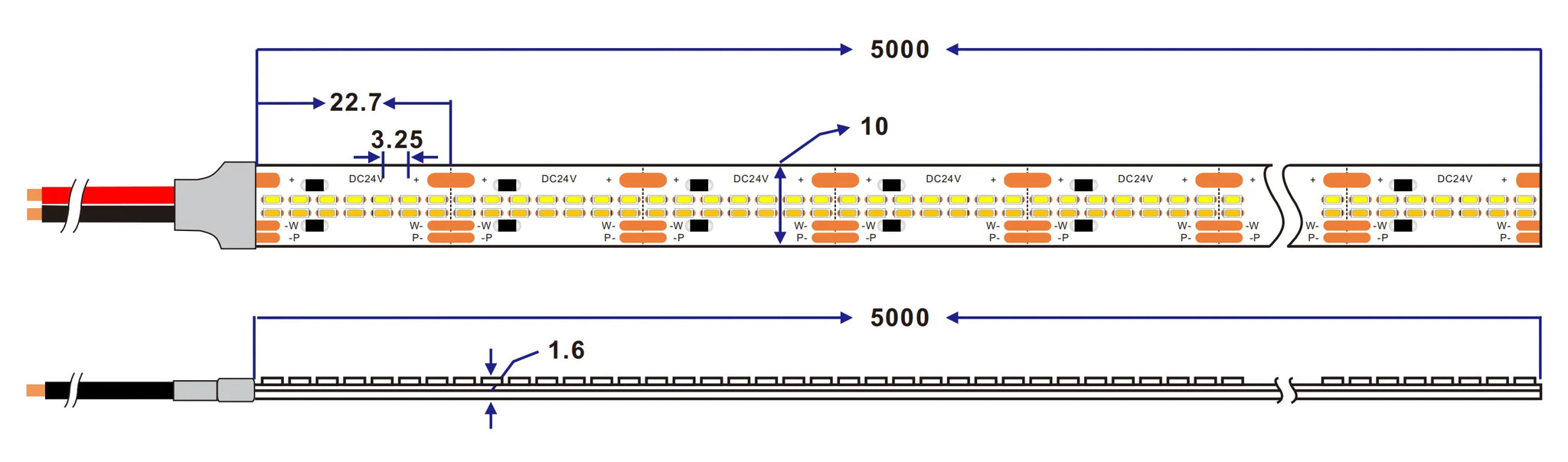

SMD2110 dual color LED Strip product details:
