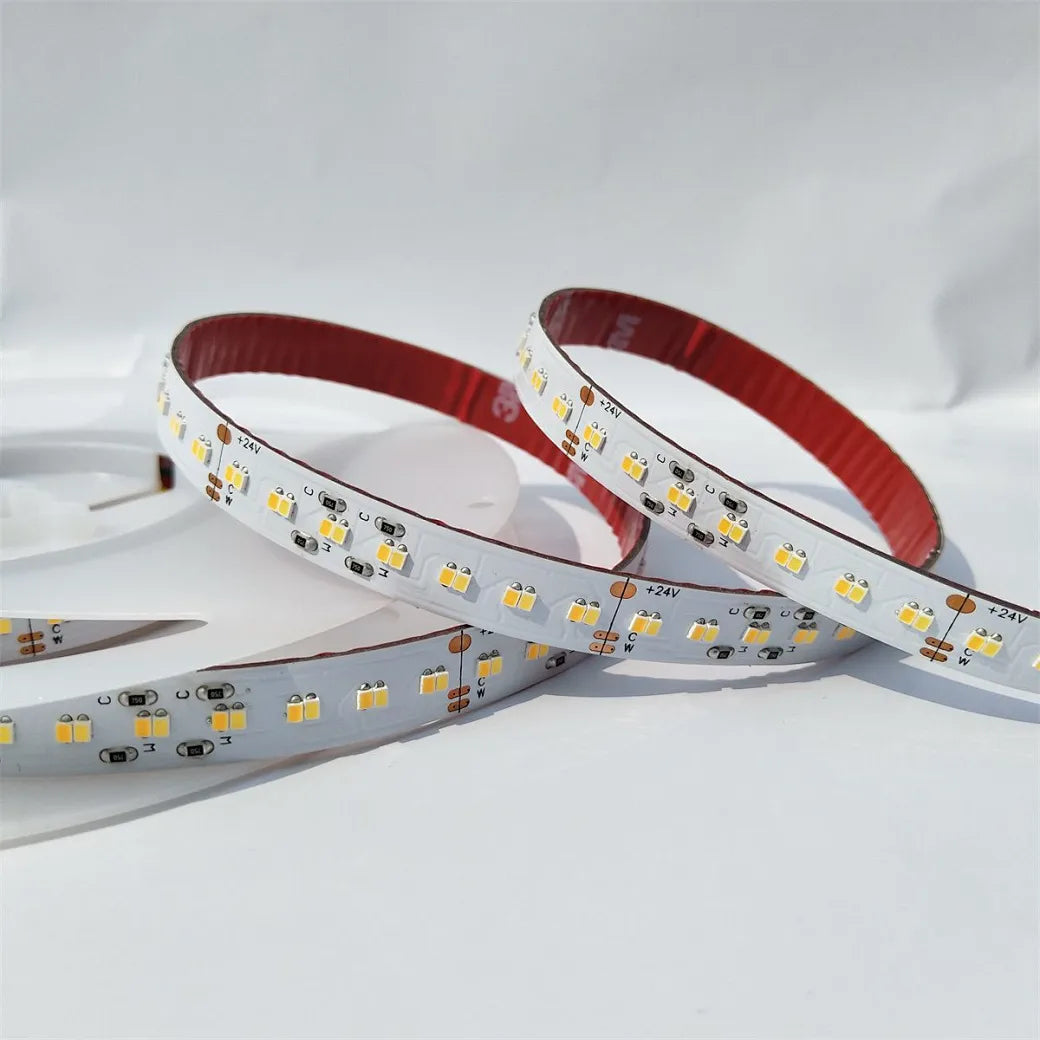

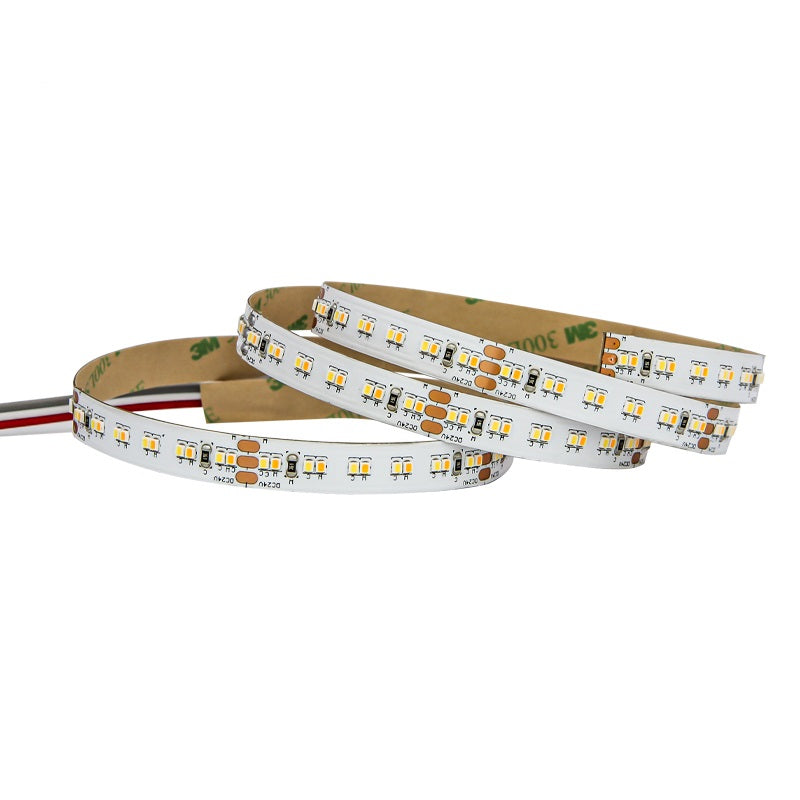

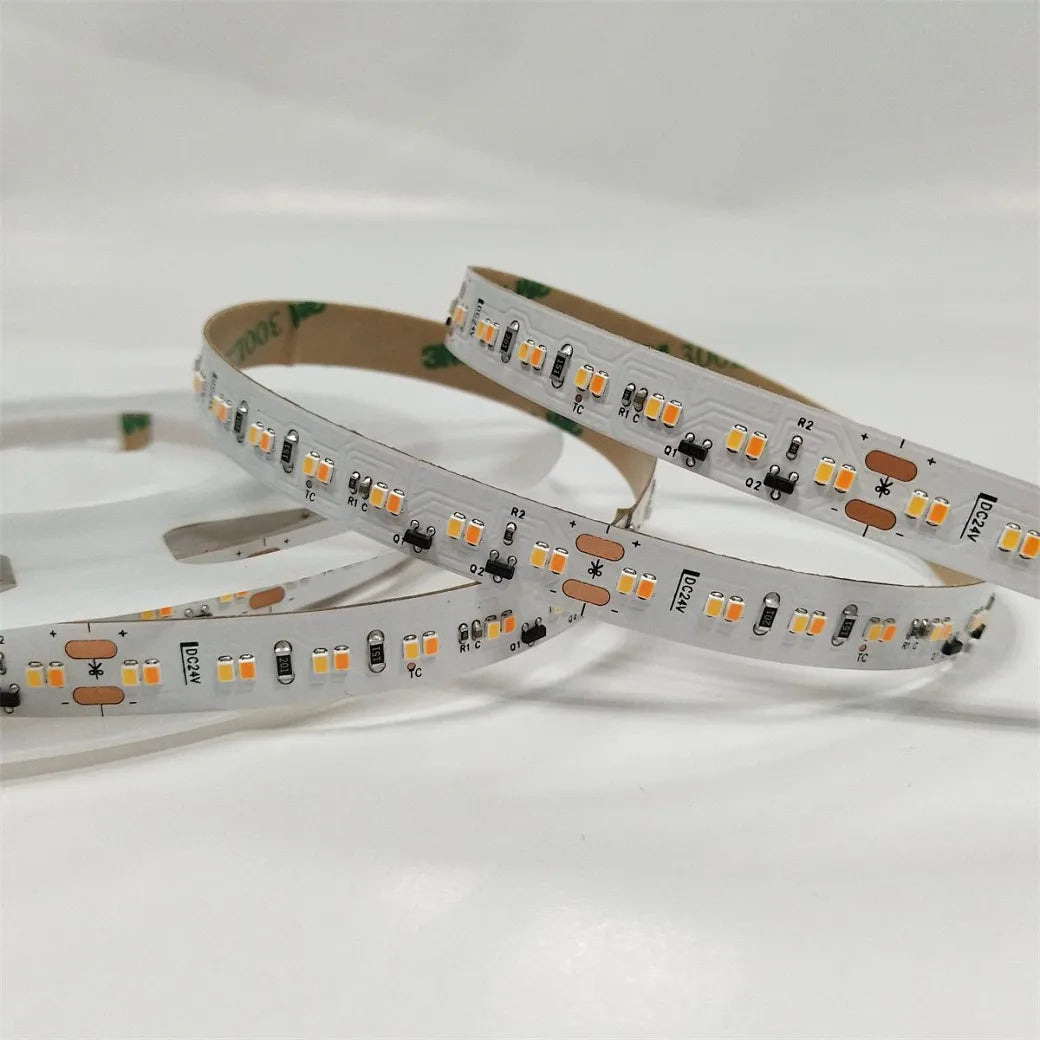

SMD2216 dual color LED strip

Product Description:

SMD2216 dual color LED strip also known as SMD2216 color temperature adjustable LED strip or SMD2216 dual white led strip or SMD2216 CCT LED strip or SMD2216 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K).

Easton Technology Co., Ltd.'s SMD2216 dual color LED strip  products include  252leds/M,240leds/M and 280Leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:

PCB color:

White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD2216 dual color LED Strip Features：

1. High-density spotless light effect
Ultra-small chip size: The SMD2216 LED chip size is 2.2mm×1.6mm, which is compact and supports high-density arrangement to achieve a "spotless light spot" effect with uniform and soft light.
Brightness and light effect: The brightness of a single LED is about 9-10lm, and the luminous flux of the high-density model reaches 1700lm/M, which is suitable for fine lighting scenes.
2. Dual-channel color temperature adjustment (CCT)
Wide color temperature range: Through the dual LED channel design (such as 2700K warm white light + 6500K cold white light), it supports dynamic adjustment of color temperature (typical range 2700K-6500K) to meet the needs of different scenes.
Controller compatibility: It needs to be matched with a PWM dimming controller to achieve color temperature grouping and remote brightness control.
3. High color rendering and color reproduction
Excellent color rendering index: The general rendering index Ra>90, the high-end model reaches Ra95, and the color of the object is truly restored. It is suitable for scenes with high requirements for color accuracy such as museums and jewelry counters.
Color consistency: SDCM (color tolerance) <3, ensuring uniform light color without deviation.
4. Flexible installation and customization options
Ultra-thin design: The PCB width is low and can be embedded in narrow spaces (such as cabinet gaps and display cabinet edges).
Various waterproof levels: Support IP20/IP65/IP67/IP68, adapting to different indoor and outdoor environments.
Cutable design: Segmented according to cutting marks, convenient for cutting length as needed.
5. Heat dissipation and long life
Low-temperature operation: High-density layout reduces the current of a single LED and reduces heat generation. Combined with copper-based PCB and aluminum trough heat dissipation, the operating temperature range is -25℃~80℃.
Long-lasting life: Typical life>50,000 hours, reducing maintenance costs.
6. Wide range of application scenarios
Home decoration: Under-cabinet lighting, stair handrails, mirror light strips, use high color rendering to enhance the texture of details.
Commercial space: shopping mall shelves, museum display cabinet lighting, Ra>95 models ensure the true color presentation of goods.
Outdoor and atmosphere: IP68 waterproof models are suitable for courtyards and billboard outline lights; CCT function can adjust color temperature in accordance with circadian rhythm.
SMD2216 CCT LED soft light strip has high-density spotless light effect, flexible color temperature adjustment and Ra>90 high color rendering as its core advantages, suitable for refined lighting design. Prefer 24V voltage model (reduce voltage drop) and aluminum trough heat dissipation to maximize performance and life.

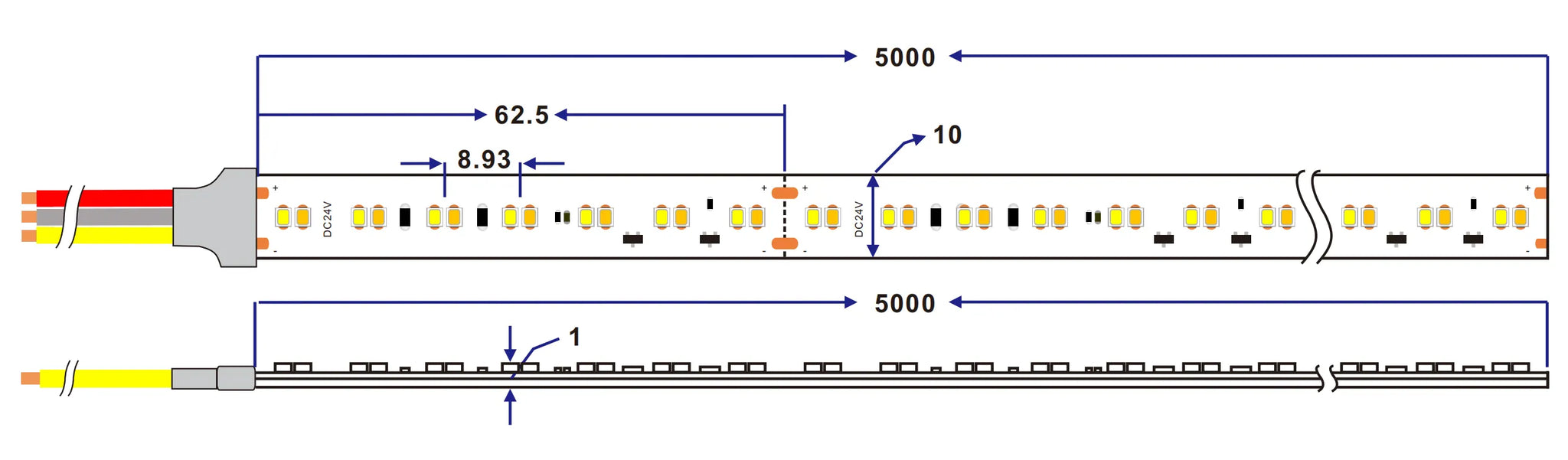

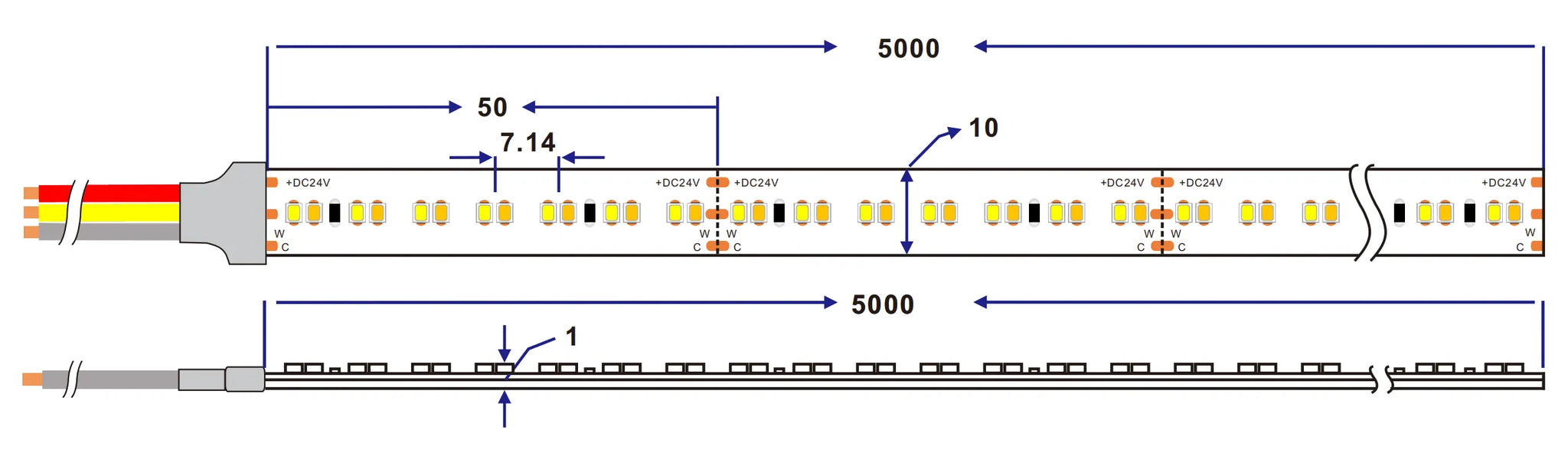

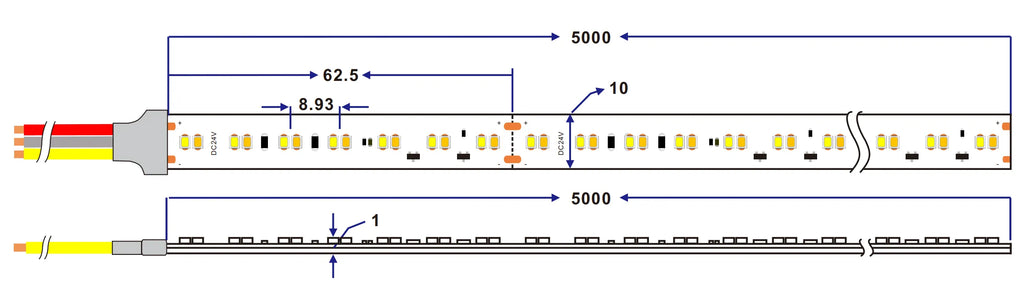

SMD2216 dual color LED Strip product details:
